High-Precision Acrylic Cutting Saw Machine for Wood and Plastic

High-Precision Acrylic Cutting Saw Machine for Wood and Plastic

acrylic cutting saw machine for wood,high-precision acrylic saw machine,plastic cutting saw machine with warranty

high-precision acrylic saw machine

plastic cutting saw machine with warranty

محل منبع:

گوانگدونگ، چین

نام تجاری:

SAIDE

گواهی:

CE

شماره مدل:

2600

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
نوع:
اره دایره ای
استفاده:
نجاری
سبک:
افقی
استفاده:
برش چوب پلاستیک اکریلیک ps pm plexi
ولتاژ:
380 ولت، 415 ولت، 220 ولت، سفارشی
ابعاد ((L*W*H):
5230x5085x1662mm
تضمین:
1 سال
درخواست:
کارهای چوبی و کارخانه سفارشی اکریلیک، به ویژه برای برش اکریلیک، پلکسی، ps، pmma، ms
وزن (کیلوگرم):
4000 کیلوگرم
توان (کیلو وات):
13 کیلو وات
نکات کلیدی فروش:
با دقت زیاد
صنایع قابل استفاده:
هتل ها ، مغازه های ساختمانی ، فروشگاه های تعمیر ماشین آلات ، کارخانه تولید ، چاپخانه ، کارهای ساختما
نوع بازاریابی:
محصول جدید 2025
گزارش آزمایش ماشین:
در دسترس نیست
بازرسی تصویری:
ارائه شده
ضمانت اجزای اصلی:
1 سال
اجزای اصلی:
موتور
نام:
دستگاه اره برش اکریلیک
حداکثر طول برش:
2600 میلی متر
حداکثر ضخامت برش:
71 میلی متر
قطر تیغه اره اصلی:
356 میلی متر
قطر تیغه اره امتیازدهی:
180 میلی متر اختیاری
سرعت تغذیه:
0-60 متر در دقیقه
فشار هوا:
5-7 کیلوگرم بر سی
سیستم کنترل:
PLC پاناسونیک ژاپن
بندر:
شنژن
برجسته کردن:

acrylic cutting saw machine for wood,high-precision acrylic saw machine,plastic cutting saw machine with warranty

,

high-precision acrylic saw machine

,

plastic cutting saw machine with warranty

شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش
2SET
قیمت
$1,000.00/sets >=1 sets
جزئیات بسته بندی
1. Protect foam films inside, 1. از فیلم های فوم در داخل محافظت کنید،
2. Firm p
قابلیت ارائه
100 ست/ست در ماه
توضیحات محصول

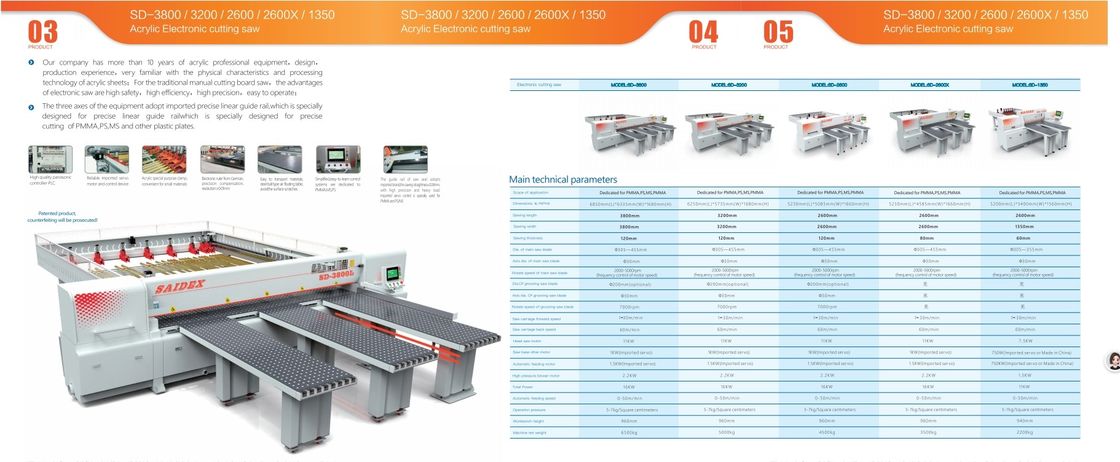

Acrylic Chipboard Cutting Beam Saw Automatic Cutting Machine Computer Panel Saw





Europe high precision 0.01mm SD-2600 automatic wood acrylic PM PS plastic cutting saw machine



High-Precision Acrylic Cutting Saw Machine for Wood and Plastic 0



SAMPLES FREE!   SAMPLES FREE!   SAMPLES FREE!



Efficient and fast processing ability is commiteed to improving the product production rate.



Products Features:



1. Reliable Japanese Panasonic servo motor and control device.



2. High quality panasonic controller PLC.



3. Acrylic special purpose clamp, convenient for samll materails.



4. Electronic ruler from German, precision compensation, resolution 0.01mm.



5. Easy transport the materials, steel ball type air floating table, avoid the surface scratches.



6. Simplified, easy to learn control systems are dedicated to PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC



7. The guide rail of saw seat adopts imported brand, the sawing straighness < 0.06mm, with high precision and heavy load, panasonic servo control is specially used for PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC .



High-Precision Acrylic Cutting Saw Machine for Wood and Plastic 1



 Products Name SD-2600 Acrylic electronic cutting saw
Dimensions(L*W*H) 5230mm*5085mm*1660mm
Sawing length 2600mm
Sawing thickness 70mm
Dia. of main saw blade φ355mm
Axis dia. of main saw blade φ30mm
Rotate speed of main saw blade 2000-5000rpm(Frequency control of motor speed)
Saw carriage forward speed 0-60m/min
Saw carriage back speed 0-60m/min
Head saw motor 7.5KW
Saw base drive motor 1000W(Panasonic servo)
Automatic feeding motor 1000W(Panasonic servo)
High pressure blower motor 2.2KW
Total Power 13KW
Automatic feeding  speed 0-60m/min
Operation pressure 5-7kg/cm²
Workbench height 950mm
Machine net weight 4500KG





If you are looking Acrylic precisely cutting Machine, you have found  the right place.



High-Precision Acrylic Cutting Saw Machine for Wood and Plastic 2

High-Precision Acrylic Cutting Saw Machine for Wood and Plastic 3



High-Precision Acrylic Cutting Saw Machine for Wood and Plastic 4



High-Precision Acrylic Cutting Saw Machine for Wood and Plastic 5





1HD Touch screen control system

  1) Easy operation, safety & reliable.

  2) Which has complete operating hints and troubleshooting guide functions.

  3) It’s cutting plan can edit manually; can simulate or execute cutting plans.

  4) Can compatible with bar code manage software or factory automation software.

  5) Machine can receive high precesion about 0.01mm.



2. Japan Panasonic PLC control system.



3. Add side aligning system:

Fix cutting panel width side, control panels won’t move or shake when sawing,

ensure sawing precision. Pressure can be adjusted according to difference thickness,

weight and material, ensure the precision of sawing dimension.



4. Saw carrier

1) Driven by imported high-precision rack & pinion, stable movement, ensure cutting precision

2). Saw carrier pull back position automatically controlled base on next cutting length,

Which reduce unused moving time and greatly improve efficiency.

3). Max cutting speed reach to 60m/min.



5. Loading system: Air floating loading table,avoiding board scratching and assuring

smoother board movement, suit for heavy and big type PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC .



6. Position system:

Imported CNC automatic positioning ruler & slid raileffectively avoid the artificial

operation error, and greatly increase cutting accuracy. Machine can receive high precesion about 0.01mm.



7. Automatic feed system

  1) Adopt 7pcs pneumatic holding gripers, can gripe the panel steadilyhighly reduce

labor intensity, and greatly improve production efficiency, Min holding panel size 45mm.

  2) Drive by Japan Panasonic Servomotor & German Electronic ruler







High-Precision Acrylic Cutting Saw Machine for Wood and Plastic 6



High-Precision Acrylic Cutting Saw Machine for Wood and Plastic 7



High-Precision Acrylic Cutting Saw Machine for Wood and Plastic 8



High-Precision Acrylic Cutting Saw Machine for Wood and Plastic 9











High-Precision Acrylic Cutting Saw Machine for Wood and Plastic 10



1. After-sell service:


    Engineers available to service machines in overseas.
    You can also have training in our factory for free.
    24 hours online service every day, free technical support for whole machine life.

2. Technical support:


    Machine has been adjusted and all parts will be tested before shipping by our QC staffs.
    We will provide the consumable parts whole machine life when you need replacement.

3. Warranty:


  Wholemachine with one year guaranty for the machine main parts (excluding the consumables), life time maintenance free of charge.



High-Precision Acrylic Cutting Saw Machine for Wood and Plastic 11





DONGGUAN SAIDE ELECTROMECHANICAL EQUIPMENT CO.,LTD


Address: Guangdong province,Dongguan city shilong town the frist industrial zone,China


Mike  +86 13392020165



Tips:



The price is EXW price,and the product price and attributes are for reference only, not as the final transaction price,transaction price should be based on your customized demand to determine the detailed offer, please contact customer service.
